In the rapidly evolving world of the Internet of Things (IoT), where billions of devices require connectivity, traditional cellular networks (like 4G or 5G) are often overkill—they are too complex, too power-hungry, and too expensive for basic Machine-to-Machine (M2M) communication. For devices that only need to send small packets of data over long distances, Sigfox provides a lean, efficient, and cost-effective alternative.
What is Sigfox?
Sigfox is a global network operator that provides a lightweight cellular-like infrastructure designed specifically for low-power IoT and M2M applications. By utilizing Ultra-Narrow Band (UNB) technology, Sigfox enables devices to transmit data with minimal energy consumption, making it the ideal solution for wide-area sensor connectivity.
Key Technical Specifications
Sigfox is designed for simplicity and efficiency. Its performance metrics are optimized for low-bandwidth, infrequent data transmission:
- Daily Message Limit: Up to 140 messages per device per day.
- Payload Size: Up to 12 bytes per message.
- Wireless Data Rate: Up to 100 bits per second (bps).
- Frequency Bands: Operates on license-free ISM bands (e.g., 868 MHz in Europe, 915 MHz in the US).
Why Choose Sigfox for IoT?
Traditional cellular systems are designed for high-speed data and voice, featuring complex radio interfaces that drain battery life. Sigfox changes the game:
- Ultra-Low Power Consumption: By simplifying communication protocols, devices can operate for years on a single small battery. It even opens the door for energy harvesting (where devices generate their own power).
- Cost-Efficiency: Sigfox utilizes simple, low-cost silicon modules, drastically reducing the total cost of ownership for massive IoT deployments.
- Complementary Technology: Sigfox is highly compatible with existing technologies like Bluetooth, GPS, and Wi-Fi, allowing developers to create hybrid solutions that enhance user experience.
Application Areas
Sigfox’s long-range coverage (30–50 km in rural areas) makes it perfect for large-scale deployments:
- Smart Energy: Smart metering for water, gas, and electricity.
- Healthcare: mHealth applications for remote patient monitoring.
- Logistics & Transport: Fleet management and asset tracking.
- Remote Monitoring: Control and surveillance in agricultural or industrial settings.
- Smart Retail: Point-of-sale updates and shelf management.
- Security: Access control and alarm monitoring systems.
Network Architecture: Simple and Scalable

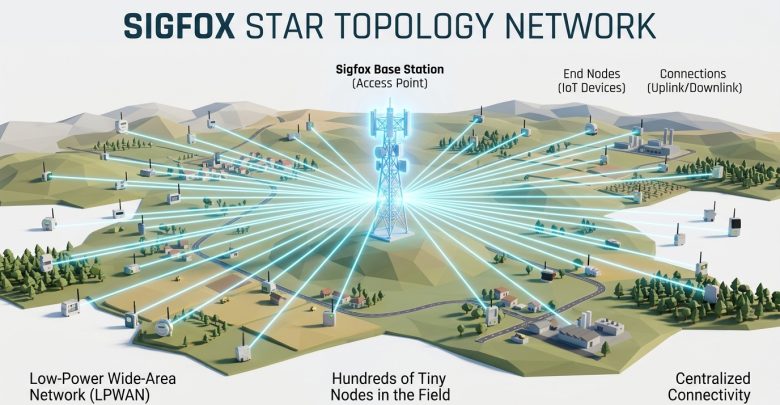

Sigfox employs a Star Topology, which is easy to set up and highly scalable.
- Cell Density: While rural coverage reaches up to 50 km, urban coverage typically ranges from 3 to 10 km due to environmental noise and physical obstacles.
- High Performance: In open-air, line-of-sight conditions, Sigfox signals have been known to travel over 1,000 km.
Conclusion
Sigfox bridges the gap for applications where low cost, low energy, and wide-area coverage are the top priorities. By simplifying the connection to the Cloud, Sigfox is enabling a new generation of smart devices that were previously impossible to connect due to technical and financial constraints.
